Question 1:

problem 1

Information needed to be encoded in a machine-level instruction:

  • operation code (opcode)
  • Address field (for operands)
  • The address specifier (for addressing modes) is only needed for ISAs with complex addressing modes

For CISC ISAs such as Intel x86, why are address specifiers are needed?

  • Address specifiers help how operands are located and accessed in memory. They help operations like array indexing with scaling, accessing local variables, and pointer deferenincing complete using a smaller amount of instructions.

Question 2:

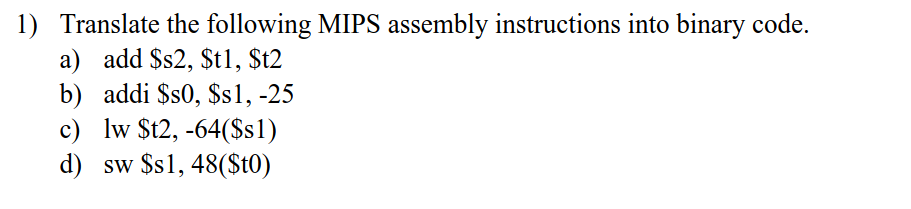

problem 1

a.) add $s2, $t1, $t2

  • R-type: opcode | rs | rt | rd | shamt | funct 6 bits | 5 | 5 | 5 | 5 | 6 bits
  • Format: add rd, rs, rt
  • 000000 = opcode for R-type
  • 01001 = $t1 (first source) = 9 = rs
  • 01010 = $t2 (second source) = 10 = rt
  • 10010 = $s2 (destination) = 18 = rd
  • 00000 = shamt (not used for add)
  • 100000 = funct code for add

Final answer: 000000 01001 01010 10010 00000 100000

b.) addi $s0, $s1, -25

  • I-type: opcode | rs | rt | immediate 6 bits | 5 | 5 | 16 bits
  • Format: addi rt, rs, imm
  • 001000 = opcode for addi
  • 10001 = $s1 (source register) = 17 = rs
  • 10000 = $s0 (destination register) = 16 = rt
  • 1111111111100111 = -25 in 16-bit two’s complement = immediate
    • 25 in binary = 0000000000011001
    • Invert bits = 1111111111100110
    • Add 1 = 1111111111100111

Final answer: 001000 10001 10000 1111111111100111

c.) lw $t2, -64($s1)

  • I-type: opcode | rs | rt | immediate 6 bits | 5 | 5 | 16 bits
  • Format: lw rt, offset(rs)
  • 100011 = opcode for lw
  • 10001 = $s1 (base register) = 17 = rs
  • 01010 = $t2 (destination) = 10 = rt
  • 1111111111000000 = -64 in 16-bit two’s complement = immediate

Final answer: 100011 10001 01010 1111111111000000

d.) sw $s1, 48($t0)

  • I-type: opcode | rs | rt | immediate
  • Format: sw rt, offset(rs)
  • 101011 = opcode for sw
  • 01000 = $t0 (base register) = 8 = rs
  • 10001 = $s1 (source register) = 17 = rt
  • 0000000000110000 = 48 in 16-bit binary = immediate

Final answer: 101011 01000 10001 0000000000110000

Problem 2

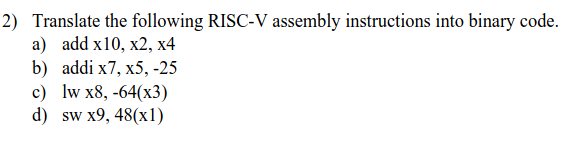

problem 2

a.) add x10, x2, x4

  • R-type: funct7 | rs2 | rs1 | funct3 | rd | opcode
  • format: add rd, rs1, rs2
  • 0000000 = funct7
  • 00100 = x4 = rs2
  • 00010 = x2 = rs1
  • 000 = funct3
  • 01010 = x10 = rd
  • 0110011 = opcode

Final answer: 0000000 00100 00010 000 01010 0110011

b.) addi x7, x5, -25

  • I-type: immediate | rs1 | funct3 | rd | opcode
  • Format addi rd, rs1, immediate
  • 111111100111 = immediate
  • 00101 = rs1
  • 000 = funct3
  • 00111 = rd
  • 0010011 = opcode

Final Answer: 111111100111 00101 000 00111 0010011

c.) lw x8, -64(x3)

  • I-type: immediate | rs1 | funct3 | rd | opcode
  • Format lw rd, offset(rs1)
  • 111111000000 = -64 in 12-bit two’s complement = immediate
  • 00011 = x3 = rs1
  • 010 = funct3
  • 01000 = x8 = rd
  • 0000011 = opcode

Final Answer: 111111000000 00011 010 01000 0000011

d.) sw x9, 48(x1)

  • S-type: imm[11:5] | rs2 | rs1 | funct3 | imm[4:0] | opcode
  • Format sw rs2, offset(rs1)
  • 000000110000 = 48 in 12-bit binary = immediate
  • 0000001 = imm[11:5] (upper 7 bits)
  • 01001 = x9 = rs2
  • 00001 = x1 = rs1
  • 010 = funct3
  • 10000 = imm[4:0] (lower 5 bits)
  • 0100011 = opcode

Final Answer: 0000001 01001 00001 010 10000 0100011
