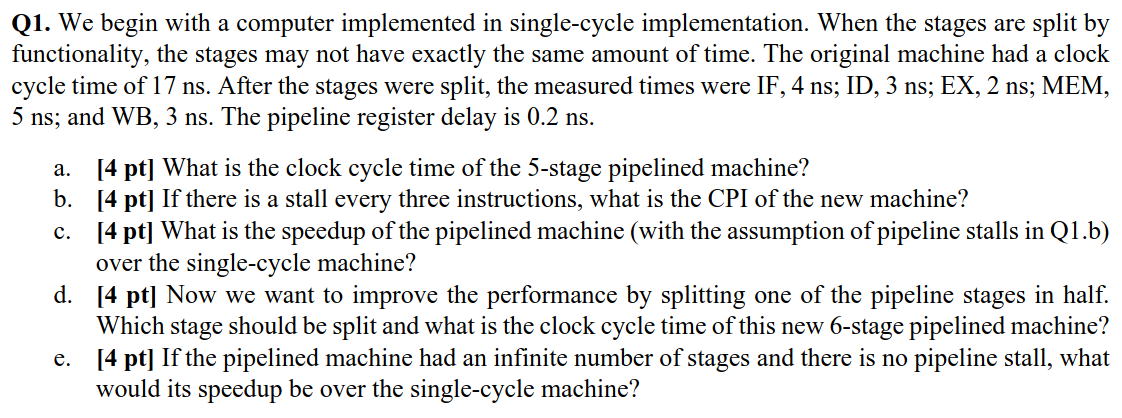

Problem 1

a.)

What is the clock cycle time of the 5-stage pipelined machine?

The slowest stage is MEM=5ns + register delay 0.2ns meaning it will take 5.2ns for each stage to complete. The clock cycle time is therefore 5.2ns.

Answer: 5.2 ns

b.)

If there is a stall every three instructions, what is the CPI of the new machine?

1 instruction is executed per cycle
stalls add extra cycle where no instruction completes
3 instructions + 1 stall = 4 total cycles
3 instructions completed
CPI = cycles/instructions = 4/3 = 1.33

Answer: CPI = 1.33

c.)

What is the speedup of the pipelined machine (with the assumption of pipeline stalls in Q1.b) over the single-cycle machine?

\text{speedup} = \frac{\text{execution time of old machine}}{\text{Execution time of new machine}} \\ \\

Old Machine

\text{CPI} = 1 \\ \text{Clock Cycle Time} = 17 \text{ ns} \\ \text{Execution Time} = \text{instructions} \times \text{CPI} \times \text{Clock Cycle Time} = 1 \times 1 \times 17 = 17 \\

New Machine

\text{CPI} = \frac{4}{3} \\ \text{Clock Cycle Time} = 5.2 \text{ ns} \\ \text{Execution Time} = \text{instructions} \times \text{CPI} \times \text{Clock Cycle Time} = 1 \times \frac{4}{3} \times 5.2 = 6.93 \\

Speedup

\frac{17}{6.93} = \textbf{2.45x}

Answer: 2.45x

d.)

Now we want to improve the performance by splitting one of the pipeline stages in half. Which stage should be split and what is the clock cycle time of this new 6-stage pipelined machine?

The longest stage (MEM=5 ns) should be split in half in order to improve performance

Clock cycle time of new 6-staged machine:

The slowest stage is IF=4ns + register delay 0.2ns meaning it will take 4.2ns for each stage to complete. The clock cycle time is therefore 4.2ns

Answer: 4.2ns

e.)

If the pipelined machine had an infinite number of stages and there is no pipeline stall, what would its speedup be over the single-cycle machine?

With an infinite number of stages we would approach a clock cycle time of approximately 0.
The register delay of 0.2 ns would be the limit for clock cycle time.
Therefore, the speedup over the single cycle machine would be

Speedup

\frac{17}{0.2} = \textbf{85x}

Answer: 85x

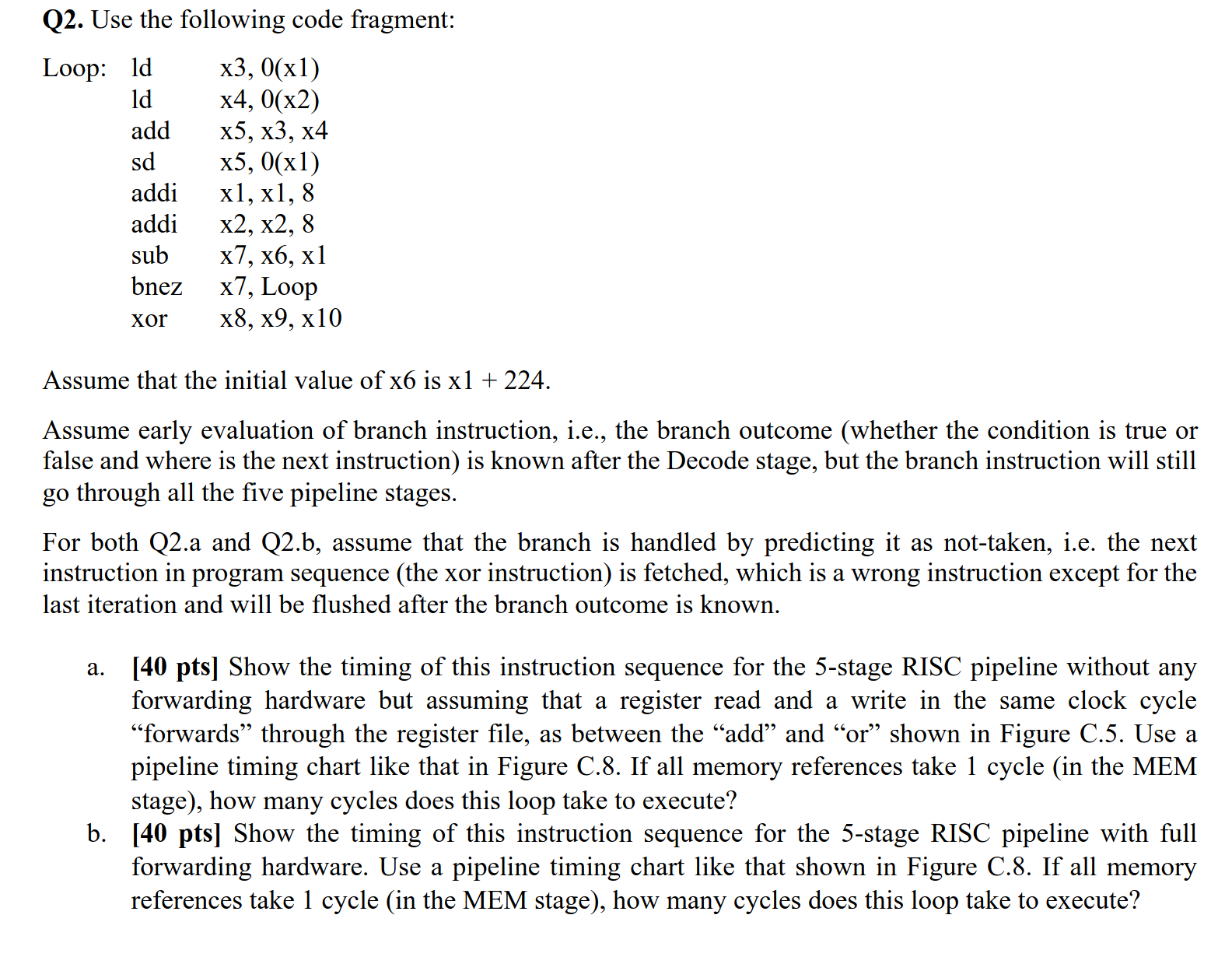

a.)

Show the timing of this instruction sequence for the 5-stage RISC pipeline without any forwarding hardware but assuming that a register read and a write in the same clock cycle “forwards” through the register file, as between the “add” and “or” shown in Figure C.5. Use a pipeline timing chart like that in Figure C.8. If all memory references take 1 cycle (in the MEM stage), how many cycles does this loop take to execute?

Answer:

Instruction	C1	C2	C3	C4	C5	C6	C7	C8	C9	C10	C11	C12	C13	C14	C15	C16	C17	C18	C19	C20	C21	C22
ld x3,0(x1)	IF	ID	EX	ME	WB
ld x4,0(x2)		IF	ID	EX	ME	WB
add x5,x3,x4			IF	ID	st	st	EX	ME	WB
sd x5,0(x1)				IF	st	st	ID	st	st	EX	ME	WB
addi x2,x2,8						IF	st	st	st	st	st	ID	EX	ME	WB
sub x7,x6,x1							IF	st	st	st	st	st	ID	st	EX	ME	WB
bnez x7,Loop								IF	st	st	st	st	st	ID	st	st	st	EX	ME	WB
xor x8,x9,x10									IF	st	st	st	st	st	st	st	st	ID	FL	EX	ME	WB
ld x3,0(x1) (i2)																		IF	ID

The loop runs for 28 iterations
Iterations 1-27 has 17 cycles: 17 * 27 = 459 cycles
Iteration 28: 21 cycles

Total number of cycles: 459 + 21 = 480

b.)

Show the timing of this instruction sequence for the 5-stage RISC pipeline with full forwarding hardware. Use a pipeline timing chart like that shown in Figure C.8. If all memory references take 1 cycle (in the MEM stage), how many cycles does this loop take to execute?

Answer:

Instruction	C1	C2	C3	C4	C5	C6	C7	C8	C9	C10	C11	C12	C13	C14	C15
ld x3,0(x1)	IF	ID	EX	ME	WB
ld x4,0(x2)		IF	ID	EX	ME	WB
add x5,x3,x4			IF	ID	st	EX	ME	WB
sd x5,0(x1)				IF	st	ID	EX	ME	WB
addi x1,x1,8					IF	st	ID	EX	ME	WB
addi x2,x2,8						IF	st	ID	EX	ME	WB
sub x7,x6,x1							IF	st	ID	EX	ME	WB
bnez x7,Loop								IF	st	ID	EX	ME	WB
xor x8,x9,x10									IF	st	ID	FL	EX	ME	WB
ld x3,0(x1) (i2)											IF	ID	EX

The loop runs for 28 iterations
Iterations 1-27 has 10 cycles: 10 * 27 = 270 cycles
Iteration 28: 14 cycles

Total: 270 + 14 = 284 cycles
