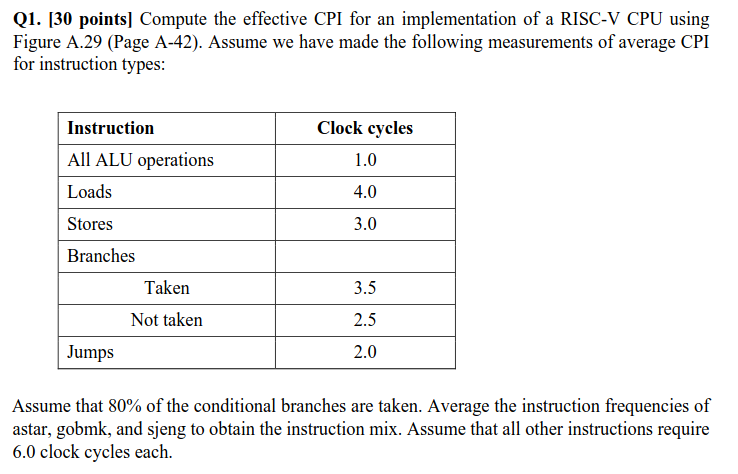

Q1.

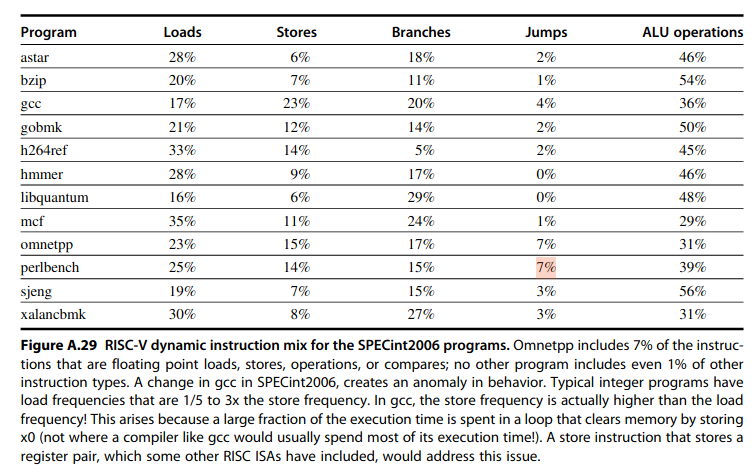

Figure A.29 (Page A-42)

• CPI: Cycles Per Instruction

1. Find the average frequencies of astar, gobmk, and sjeng:

• Loads:

  $$\frac{28\% + 21\% + 19\%}{3} = 22\%$$

• Stores:

  $$\frac{6\% + 12\% + 7\%}{3} = 8.33\%$$

• Branches:

  $$\frac{18\% + 14\% + 15\%}{3} = 15.67\%$$

• Jumps:

  $$\frac{2\% + 2\% + 3\%}{3} = 2.33\%$$

• ALU operations:

  $$\frac{46\% + 50\% + 56\%}{3} = 50.67\%$$

• Since 80% of branches are taken and 20% are not taken:

• Taken branches:

  $$15.67\% \times 0.80 = 12.53\%$$

• Not taken branches:

  $$15.67\% \times 0.20 = 3.13\%$$

• Other instructions:

  $$100\% - 22.67\% - 8.33\% - 15.67\% - 2.33\% - 50.67\% = 0.33\%$$

2. Multiply each frequency by its corresponding CPI:

• ALU operations:

  $$50.67\% \times 1.0 = 0.5067$$

• Loads:

  $$22.67\% \times 4.0 = 0.9068$$

• Stores:

  $$8.33\% \times 3.0 = 0.2499$$

• Branches:

  • Taken:

    $$12.53\% \times 3.5\% = 0.4389$$

  • Not taken:

    $$3.13\% \times 2.5\% = 0.07825$$

• Jumps:

  $$2.33\% \times 2.0\% = 0.0466$$

• Other instructions:

  $$0.33\% \times 6.0\% = 0.0198$$

3. Sum to get Effective CPI

• On average, each instruction in this processor implementation takes 2.25 clock cycles to complete, given this particular instruction mix and specified CPI values for each instruction type.

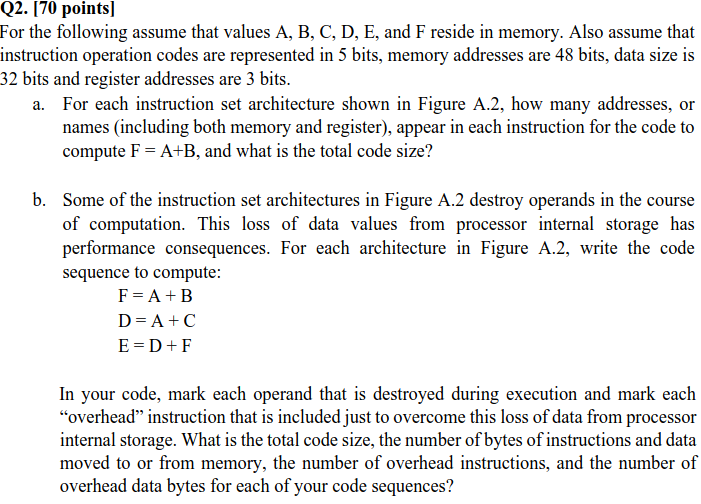

Q.2

• A, B, C, D, E, and F reside in memory
• Instruction operation codes are represented in 5 bits
• Memory addresses are 48 bits
• Data size is 32 bits
• Register addresses are 3 bits

a.

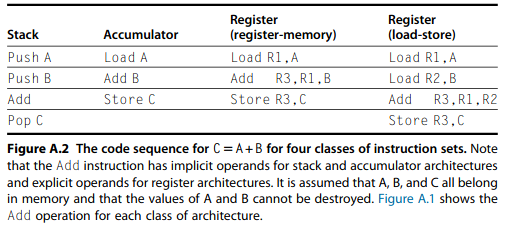

Figure A.2

Stack Architecture

Push A

• 1 memory address
• Operation code: 5 bits
• Memory address A: 48 bits
• Data size: 32 bits
  $$48 + 5 + 32 = 85 \text{ bits}$$

Push B

• 1 memory address
• Operation code: 5 bits
• Data size: 32 bits
  $$48 + 5 + 32 = 85 \text{ bits}$$

Add

• 0 memory addresses
• Operation code: 5 bits

Pop F

• 1 memory address
• Operation code: 5 bits
• Memory address F: 48 bits
• Data size: 32 bits
  $$48 + 5 + 32 = 85 \text{ bits}$$

Total code size for stack architecture:

Accumulator

Load A

• 1 memory address
• Operation code: 5 bits
• Memory address A: 48 bits
• Data size: 32 bits
  $$48 + 5 + 32 = 85 \text{ bits}$$

Add B

• 1 memory address
• Operation code: 5 bits
• Memory address B: 48 bits
• Data size: 32 bits
  $$48 + 5 + 32 = 85 \text{ bits}$$

Store F

• 1 memory address
• Operation code: 5 bits
• Memory address F: 48 bits
• Data size: 32 bits
  $$48 + 5 + 32 = 85 \text{ bits}$$

Total code size for accumulator architecture:

Register (register-memory)

Load R1, A

• 1 memory address
• 1 register address
• Operation code: 5 bits
• Memory address A: 48 bits
• Register address R1: 3 bits
• Data size: 32 bits
  $$48 + 5 + 3 + 32 = 88 \text{ bits}$$

Add R3, R1, B

• 1 memory address
• 2 register address
• Operation code: 5 bits
• Memory address B: 48 bits
• Register address R3: 3 bits
• Register address R1: 3 bits
• Data size: 32 bits
  $$48 + 5 + 3 + 3 + 32 = 91 \text{ bits}$$

Store R3, F

• 1 memory address
• 1 register address
• Operation code: 5 bits
• Memory address F: 48 bits
• Register address R3: 3 bits
• Data size: 32 bits
  $$48 + 5 + 3 + 32 = 88 \text{ bits}$$

Total code size for register-memory architecture:

Register (load-store)

Load R1, A

• 1 memory address
• 1 register address
• Operation code: 5 bits
• Memory address A: 48 bits
• Register address R1: 3 bits
• Data size: 32 bits
  $$48 + 5 + 3 + 32 = 88 \text{ bits}$$

Load R2, B

• 1 memory address
• 1 register address
• Operation code: 5 bits
• Memory address B: 48 bits
• Register address R2: 3 bits
• Data size: 32 bits
  $$48 + 5 + 3 + 32 = 88 \text{ bits}$$

Add R3, R1, R2

• 3 register address
• Operation code: 5 bits
• Register address R1: 3 bits
• Register address R2: 3 bits
• Register address R3: 3 bits
• Data size: 32 bits
  $$5 + 3 + 3 + 3 + 32 = 46 \text{ bits}$$

Store R3, F

• 1 memory address
• 1 register address
• Operation code: 5 bits
• Memory address F: 48 bits
• Register address R3: 3 bits
• Data size: 32 bits
  $$48 + 5 + 3 + 32 = 88 \text{ bits}$$

Total code size for load-store architecture:

b.

Stack Architecture

Push A
Push B
Add         ; A and B destroyed
Store F     ; Save F to memory, pop result

Push A      ; Load A again (overhead)
Push C
Add         ; A and C destroyed
Store D     ; Save D to memory

Load F      ; Push F back onto stack (overhead)
Load D      ; Push D onto stack (overhead)
Add         ; D and F are destroyed
Store E

• Total code size:

Push A    → 5 + 48 = 53 bits
Push B    → 5 + 48 = 53 bits
Add       → 5 bits
Store F   → 5 + 48 = 53 bits

Push A    → 5 + 48 = 53 bits
Push C    → 5 + 48 = 53 bits
Add       → 5 bits
Store D   → 5 + 48 = 53 bits

Load F    → 5 + 48 = 53 bits
Load D    → 5 + 48 = 53 bits
Add       → 5 bits
Store E   → 5 + 48 = 53 bits

• Total instruction fetches
  $$\text{Total} = (9 \times 53) + (3 \times 5) = 492 \text{ bits} = 61.5 \text{ bytes}$$

• Total Instructions: 12

• Overhead Instructions: 3

  • Push A (2nd time)
  • Load F
  • Load D

• Bytes of instructions and data moved to/from memory:

  • Loads
    $$A + B + A + C + F + D = 6 \times 32 = 192 \text{ bits}$$
  • Stores
    $$F + D + E = 3 \times 32 = 96 \text{ bits}$$
  • Total data moved:
    $$288 \text{ bits} = 36 \text{ bytes}$$
  • Total instruction fetches
    $$61.5 \text{ bytes}$$
  • Total memory traffic
    $$\text{Total memory traffic} = 36 + 61.5 = 97.5 \text{ bytes}$$

• Overhead data bytes:

  $$3 \times 32 = 96 \text{ bits} = 12 \text{ bytes}$$

Accumulator Architecture

Load A
Add B         ; A destroyed
Store F       ; Save F to memory

Load A        ; Load A again (overhead)
Add C         ; A destroyed
Store D       ; Save D to memory

Load D        ;
Add F         ; D is destroyed
Store E

• Total code size:

Load A    → 5 + 48 = 53 bits
Add B     → 5 + 48 = 53 bits
Store F   → 5 + 48 = 53 bits

Load A    → 5 + 48 = 53 bits
Add C     → 5 + 48 = 53 bits
Store D   → 5 + 48 = 53 bits

Load D    → 5 + 48 = 53 bits
Add F     → 5 + 48 = 53 bits
Store E   → 5 + 48 = 53 bits

• Total code size

  $$\text{Total} = (9 \times 53) = 477 \text{ bits} = 59.625 \text{ bytes}$$

• Total Instructions: 9

• Overhead Instructions: 1

  • Load A

• Bytes of instructions and data moved to/from memory:

  • Loads
    $$A + B + A + C + F + D = 6 \times 32 = 192 \text{ bits}$$
  • Stores
    $$F + D + E = 3 \times 32 = 96 \text{ bits}$$
  • Total data moved:
    $$288 \text{ bits} = 36 \text{ bytes}$$
  • Total instruction fetches
    $$59.625 \text{ bytes}$$
  • Total memory traffic
    $$\text{Total memory traffic} = 36 + 59.625 = 95.625 \text{ bytes}$$

• Overhead data bytes:

  $$1 \times 32 = 32 \text{ bits} = 4 \text{ bytes}$$

Register (register-memory) Architecture

Load R1, A      ; R1 = A
Add R3, R1, B   ; R3 = R1 + B
Store R3, F     ; Save F

Add R3, R1, C   ; R3 = R1 + C
Store R3, D     ; Save D

Load R1, D
Add R3, R1, F   ; R3 = R1 + F
Store R3, E     ; Save E

• Total code size:

Load R1, A     → 5 + 3 + 48 = 56 bits
Add R3, R1, B  → 5 + 3 + 3 + 48 = 59 bits
Store R3, F    → 5 + 3 + 48 = 56 bits
Add R3, R1, C  → 5 + 3 + 3 + 48 = 59 bits
Store R3, D    → 5 + 3 + 48 = 56 bits
Load R1, D     → 5 + 3 + 48 = 56 bits
Add R3, R1, F  → 5 + 3 + 3 + 48 = 59 bits
Store R3, E    → 5 + 3 + 48 = 56 bits

• Total Instructions: 7

• Overhead Instructions: 0

• Bytes of instructions and data moved to/from memory:

  • Loads
    $$A + D = 2 \times 32 = 64 \text{ bits}$$
  • Stores
    $$F + D + E = 3 \times 32 = 96 \text{ bits}$$
  • Total data moved:
    $$160 \text{ bits} = 20 \text{ bytes}$$
  • Total instruction fetches
    $$57.125 \text{ bytes}$$
  • Total memory traffic
    $$\text{Total memory traffic} = 20 + 57.125 = 77.125 \text{ bytes}$$

• Overhead data bytes: 0 bytes

Register (load-store) Architecture

Load R1, A      ; R1 = A
Load R2, B      ; R2 = B
Add R3, R1, R2  ; R3 = R1 + R2
Store R3, F

Load R2, C      ; R2 = C
Add R3, R1, R2  ; R3 = R1 + R2
Store R3, D     ; Save D

Load R1, D
Load R2, F
Add R3, R1, R2  ; R3 = R1 + R2
Store R3, E     ; Save E

• Total code size:

Load R1, A      → 5 + 3 + 48 = 56 bits
Load R2, B      → 5 + 3 + 48 = 56 bits
Add R3, R1, R2  → 5 + 3 + 3 + 3 = 14 bits
Store R3, F     → 5 + 3 + 48 = 56 bits

Load R2, C      → 5 + 3 + 48 = 56 bits
Add R3, R1, R2  → 5 + 3 + 3 + 3 = 14 bits
Store R3, D     → 5 + 3 + 48 = 56 bits

Load R1, D      → 5 + 3 + 48 = 56 bits
Load R2, F      → 5 + 3 + 48 = 56 bits
Add R3, R1, R2  → 5 + 3 + 3 + 3 = 14 bits
Store R3, E     → 5 + 3 + 48 = 56 bits

• Total Instructions: 11

• Overhead Instructions: 0

• Bytes of instructions and data moved to/from memory:

  • Loads
    $$A + B + C + D + F = 5 \times 32 = 160 \text{ bits}$$
  • Stores
    $$F + D + E = 3 \times 32 = 96 \text{ bits}$$
  • Total data moved:
    $$256 \text{ bits} = 32 \text{ bytes}$$
  • Total instruction fetches
    $$61.25 \text{ bytes}$$
  • Total memory traffic
    $$\text{Total memory traffic} = 32 + 61.25 = 93.25 \text{ bytes}$$

• Overhead data bytes: 0 bytes
